Tx14 — intelligent multipurpose point-source loudspeaker with onboard DSP, power and networking. 139 dB peak SPL, 50° × 70° directivity.
.dynamics

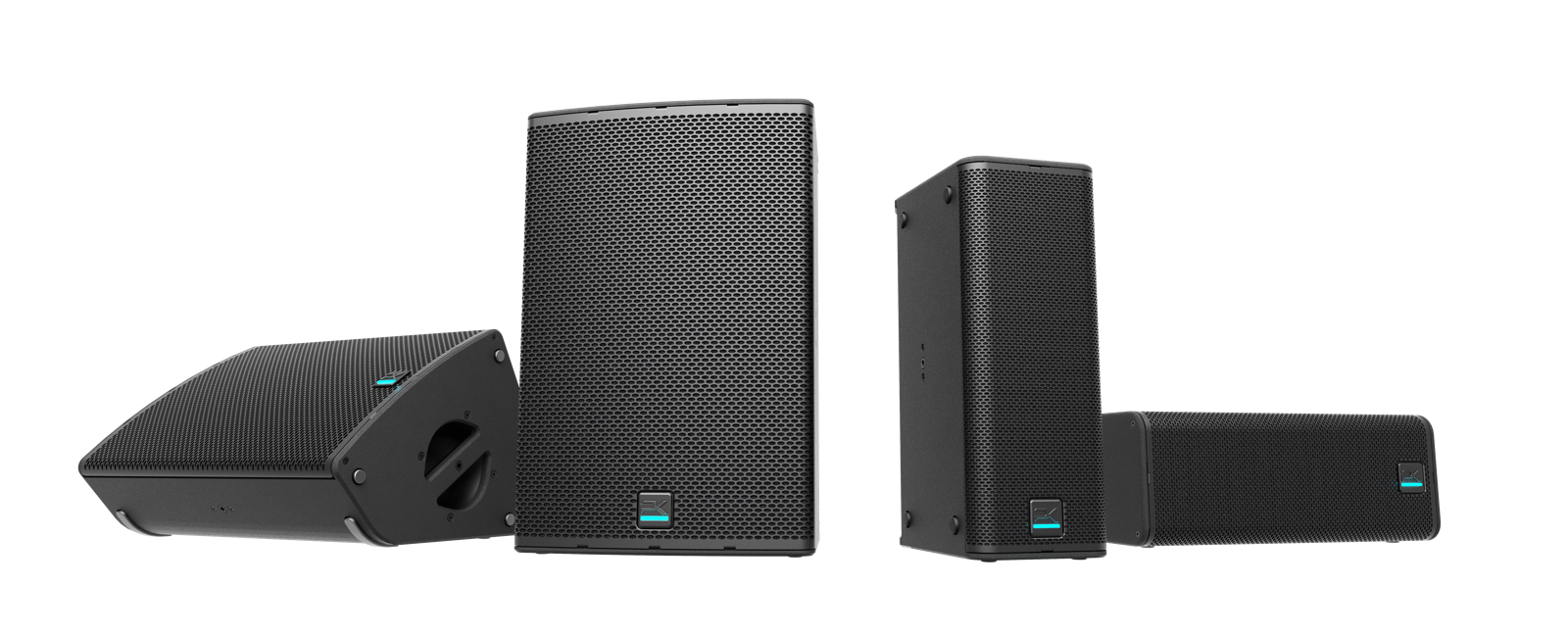

Tx14 is an intelligent multipurpose point-source loudspeaker with onboard DSP, power, and networking. Configured and controlled via PK .dynamics software, the Tx Series complements PK Sound's Trinity Series of robotic line source systems to offer a complete solution for a myriad of mobile and installed applications.
In addition to peak SPLs reaching 139 dB, Tx14 features controlled 50° × 70° directivity with a frequency response spanning 50 Hz-18 kHz.
A two-channel VE15 1,400 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output. A combination of FIR and IIR filters is applied to ensure smooth frequency response throughout the listening area.

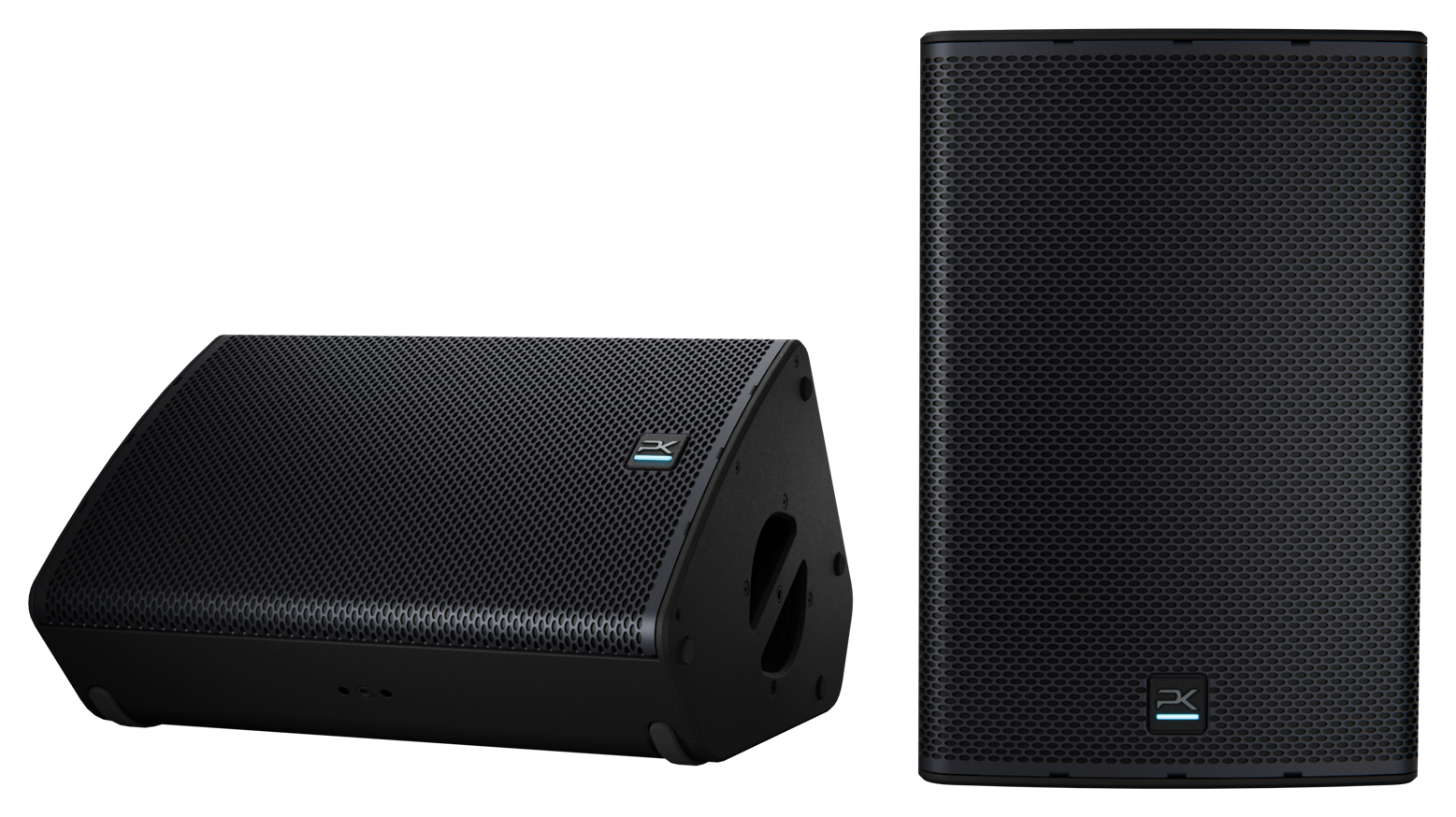

As a floor monitor, the Tx14 has a natural inclination of 35°, which is easily extended to 55° via the onboard uptilt stands.
The rugged, premium-grade Baltic birch enclosure is finished with an impact-resistant, tour-grade Polyurea coating.
| Peak SPL | 139 dB |
| Frequency Response | 50 Hz-18 kHz (±10 Hz) |
| Directivity | 50° × 70° |

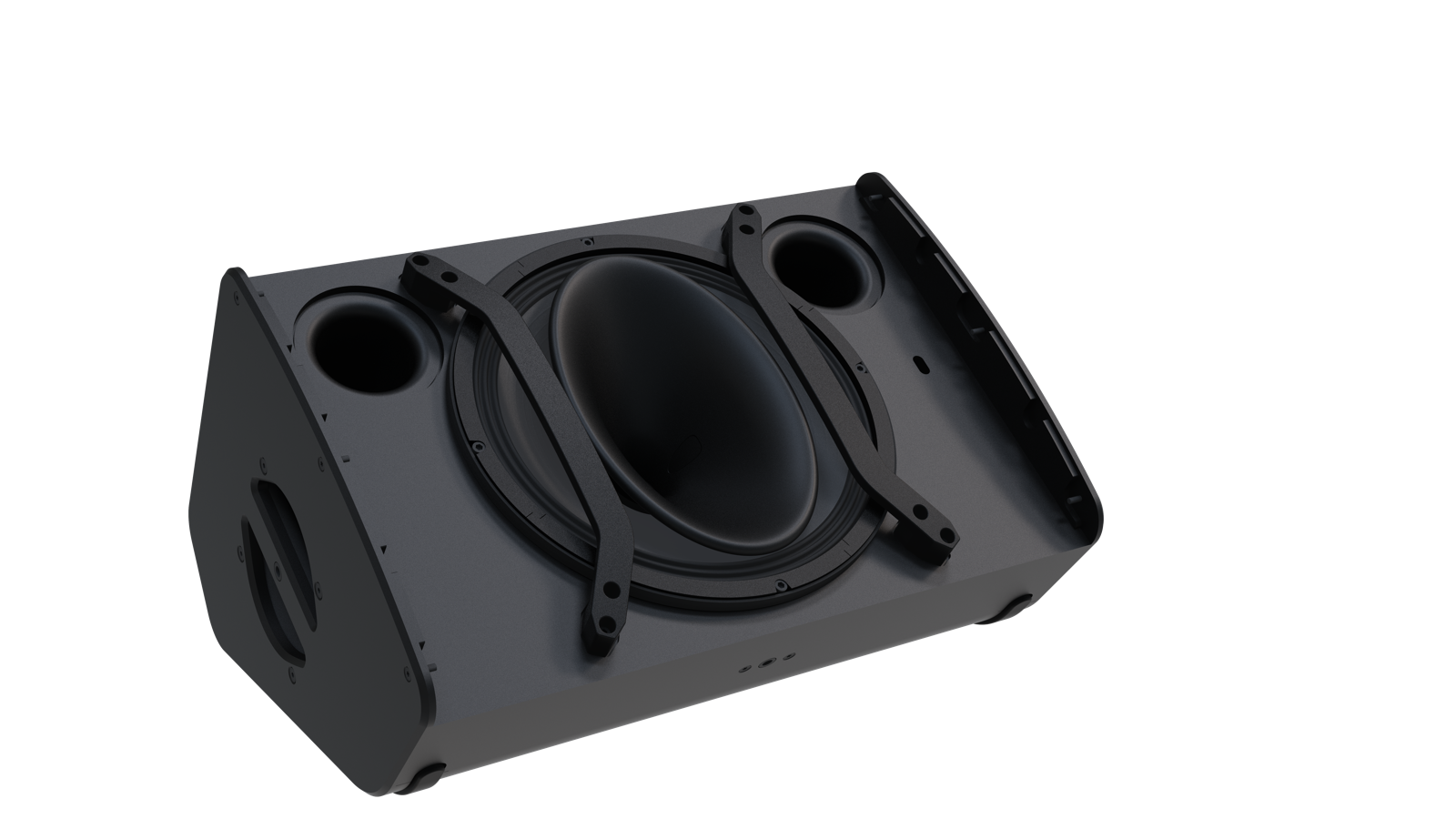

| Low Frequency | 1 × 14″ Glass Fibre Reinforced Cone |
| High Frequency | 1 × 3″ Titanium Diaphragm Compression Driver |
| Amplifier | VE15 2-Channel Class D |
| Amplifier Power | 1,400 W |
| Operating Voltage | Auto-Switching 100-240 V, 50/60 Hz |
| Power Consumption | 220 W |
| Network | Proprietary / AVB Ready |
| Input Selection | Analog/AES — IP65 |
| Audio/Network | Balanced XLR/etherCON — IP65 |
| Power | powerCON TRUE1 — IP65 |
| Weight | 23.1 kg / 51 lb |
| W × H × D (mm) | 400 × 599 × 359 |
| W × H × D (in) | 15.8 × 23.6 × 14.1 |
| Environmental | IP54 |
| Module Construction | Premium-Grade Baltic Birch |
| Rigging | 4 × M10 — Carbon Steel |
| External Coating | EXL Polyurea |
| Grill | Powder Coated Steel |
| Warranty | 7 years · all components |
