Ts15 — the compact subwoofer in the Trinity Series. 136.5 dB peak SPL, 33-130 Hz, single 15-inch bass reflex design on the VE platform.
AES70.dynamics

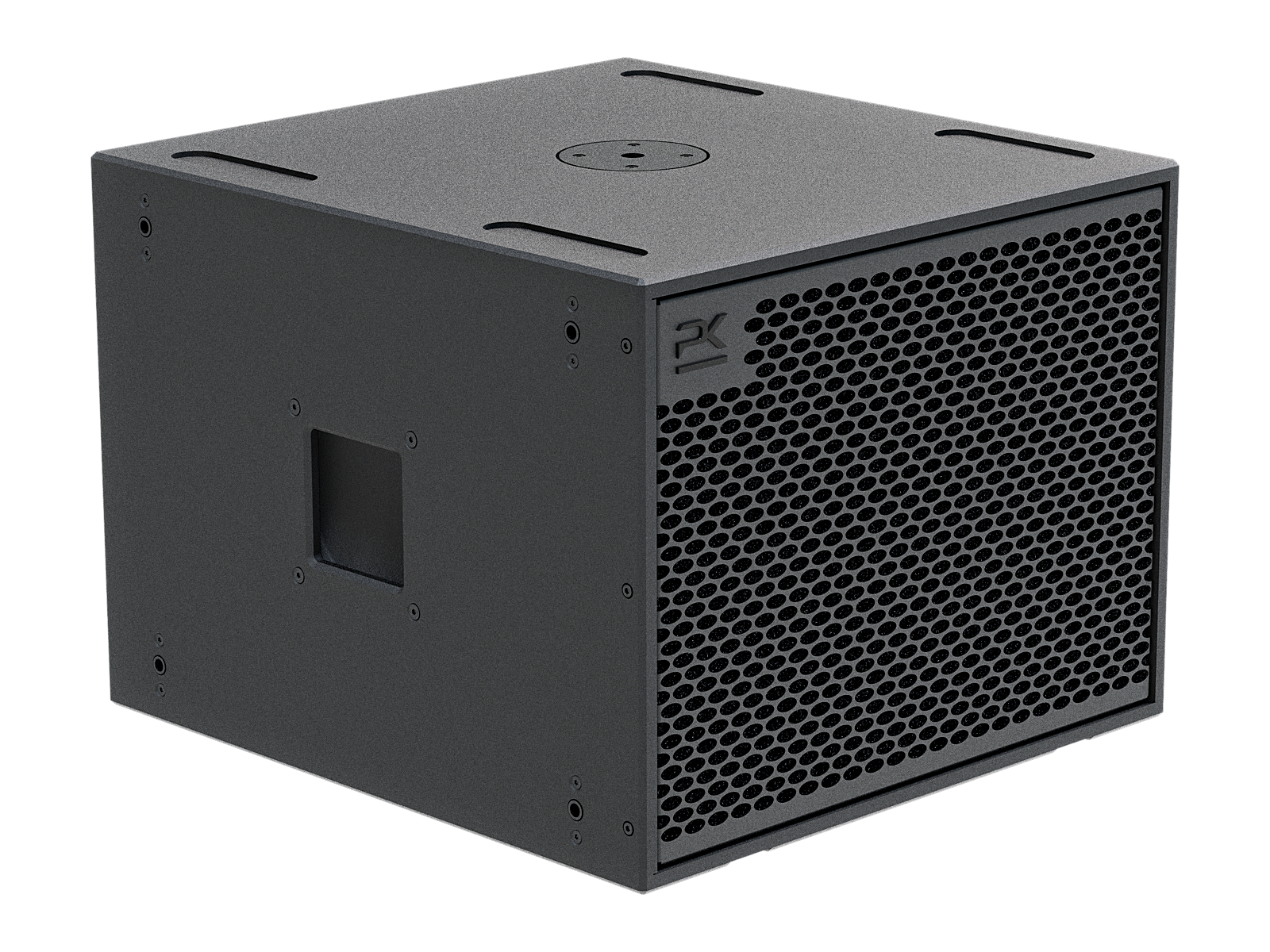

Ts15 is the compact subwoofer offering in the Trinity Series, the industry's first series of robotically controlled line source systems. This high-output, low-profile enclosure offers outstanding low-frequency performance with peak SPLs of 136.5 dB and an operating range of 33-130 Hz.
Ts15 features a front-loaded, long-excursion 15″ transducer in a bass reflex design for clean and punchy output. A large vent enables high SPL performance with minimal port distortion. PK Sound's proprietary VE platform single field-replaceable module located on the rear of the cabinet contains the 2,400 W Class D amplifier, control electronics, and power supply.

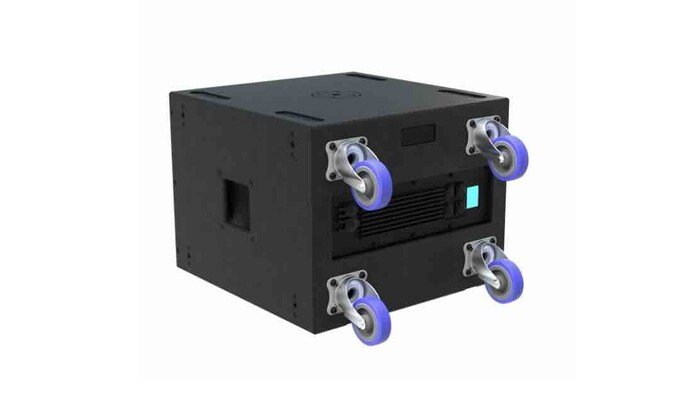

Integrated rigging hardware allows for modules to be securely ground-stacked or flown as single units in a wide array of configurations via an optional Bracket Set. An M20 pole mount thread is also located atop the unit, and an optional Caster Kit is easily installed for portability.
A low-profile design allows Ts15 to fit in a wide variety of spaces and efficiently pack for global transport, making it an ideal solution for both mobile and installed applications.
| Peak SPL | 136.5 dB |
| Frequency Response | 33-130 Hz |
| Low Frequency | 1 × 15″ Bass Reflex |
| Amplifier | VE30 Class D |
| Amplifier Power | 2,400 W |
| Operating Voltage | Auto-Switching 100-240 V, 50/60 Hz |
| Power Consumption | 440 W |
| Network | AES70 / Proprietary |
| Input Selection | Analog/AES — IP65 |
| Audio/Network | Balanced XLR/etherCON — IP65 |
| Power | powerCON TRUE1 — IP65 |
| Weight | 37.8 kg / 83.3 lb |
| W × H × D (mm) | 560 × 448 × 595 |
| W × H × D (in) | 22.0 × 17.6 × 23.4 |
| Environmental | IP54 |
| Module Construction | Void-Free, High-Grade Baltic Birch |
| External Coating | EXL Polyurea |
| Grill | Powder Coated Steel |
| Warranty | 7 years · all components |
