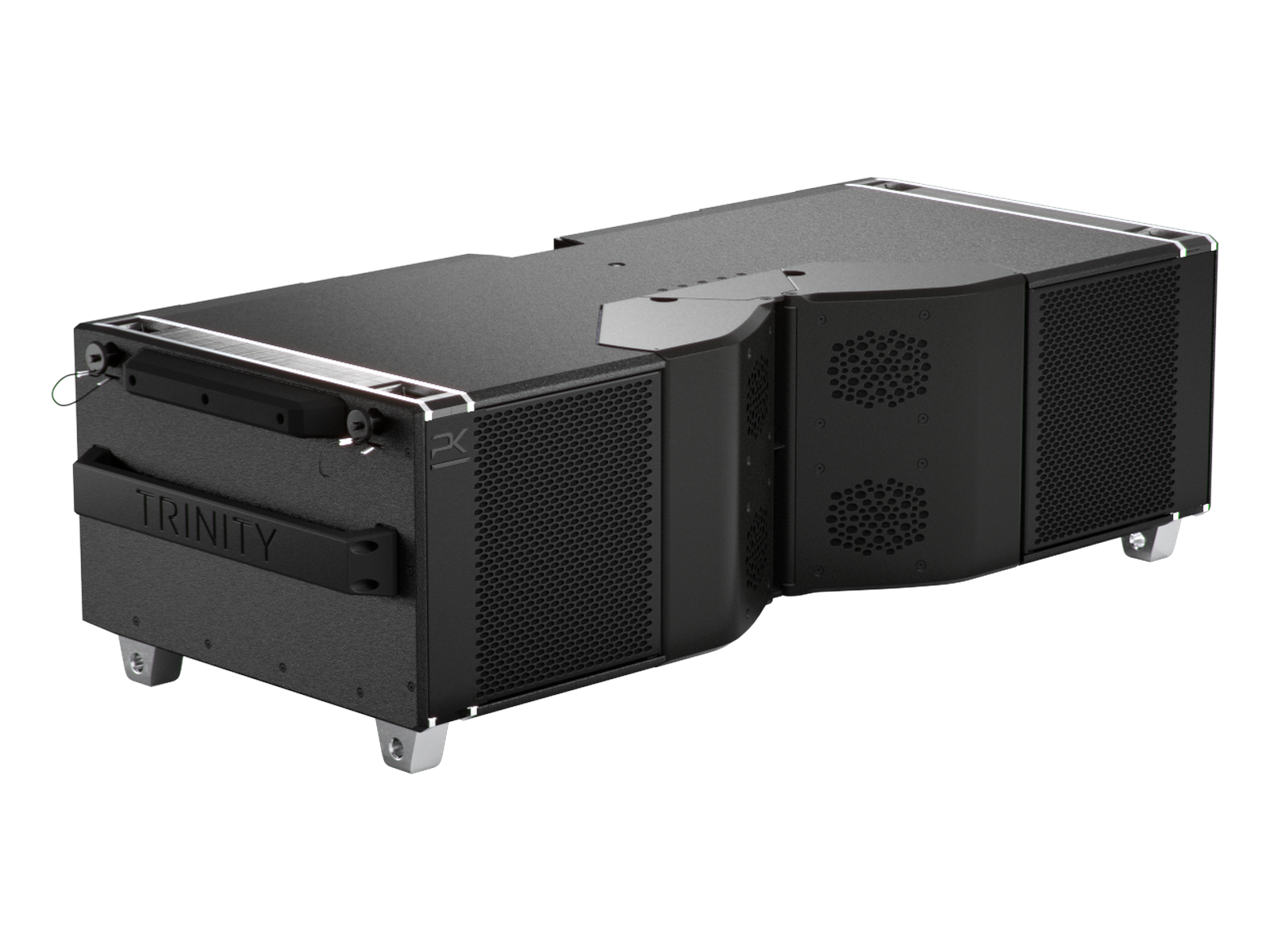

Trinity Black — the flagship of the industry's first robotically controlled line source family. 151.4 dB peak SPL, 40 Hz-20 kHz, multi-axis robotic coverage.
Trinity Black is the latest generation of the industry's first robotically controlled line source. Stunning SPL and clarity can be precisely controlled with variable coverage in both the vertical and horizontal planes, allowing system operators maximum flexibility in making coverage adjustments after the array is flown.
Horn loaded 12″ transducers manage low frequency response. The mid frequency band is supported by 4 × 6.5″ midrange transducers affixed to the patented Coherent Midrange Integrator (CMI). Two dual-diaphragm high-frequency transducers, coupled directly to an integrated planar waveguide, significantly reduce distortion across the high frequency band. A 6,000 W Class D amplifier maximizes headroom while maintaining crystal clear audio and exceptional output.
The patented CMI Waveguide seamlessly combines mid and high frequencies, coupled with precisely spaced low frequency apertures for smooth and controlled directivity. It allows for variable adjustability from 60°-120° both symmetrically and asymmetrically. Designers can vary the directivity of individual modules within the array to enhance overall system performance.

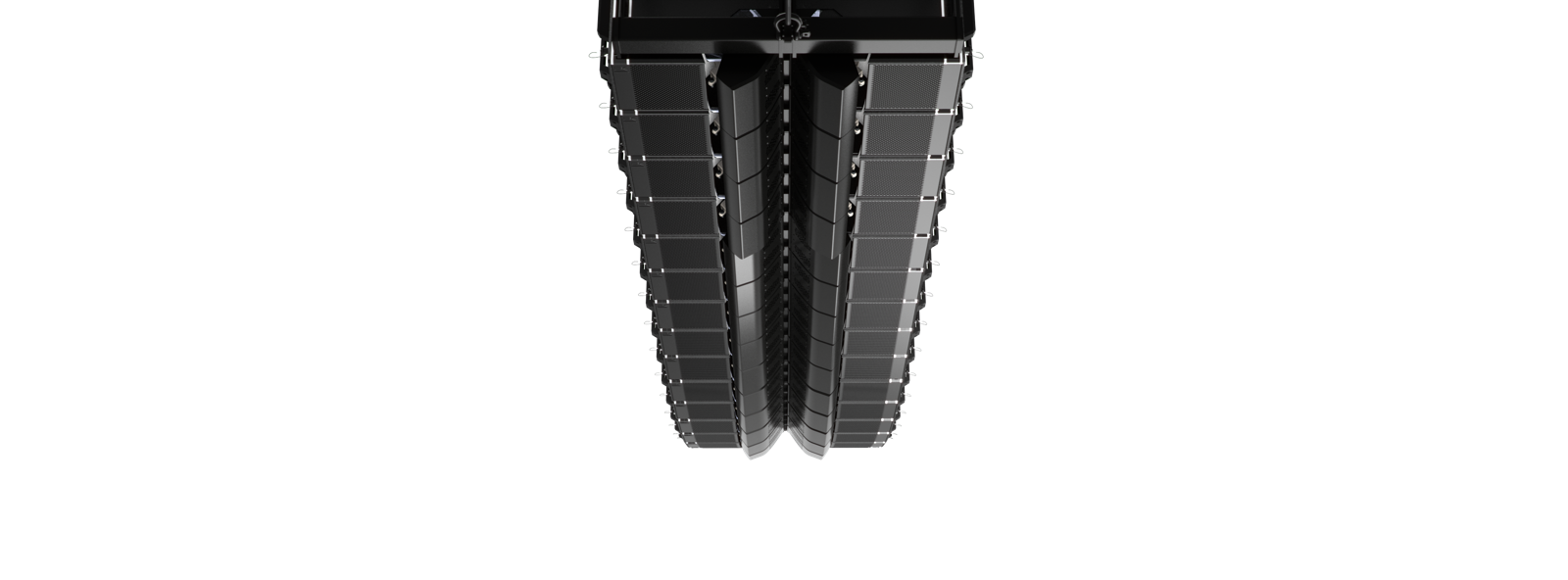

Flown straight, the directivity is configured remotely using industrial linear actuators with a duty cycle of up to 109 years. Horizontal angles can be set to one of over 30 variable angles allowing for mechanical optimization. Vertical angles are variable with 0.1° accuracy. Finally, a combination of FIR and IIR filters is applied to ensure smooth frequency response in the listening area.
| Peak SPL | 151.4 dB |
| Frequency Response | 40 Hz-20 kHz |
| Actuation System | |
| Horizontal Directivity | 60°-120° Robotic Directivity |
| Horizontal Resolution | 5° Symmetric & Asymmetric |
| Vertical Adjustment | 0-5.5° Robotic Directivity |
| Vertical Resolution | 0.1° Increments |
| Horizontal Thrust | 750 N |
| Vertical Thrust | 10,000 N |
| IP Rating | IP69K (static), IP66 (dynamic) |
| Duty Cycle | 80,000 Actuations (109 years) |
| Low Frequency | 2 × 12″ Neodymium Horn Loaded |
| Mid Frequency | 4 × 6.5″ on Coherent Midrange Integrator |
| High Frequency | 2 × 4″ Dual Diaphragm Planar Wave |
| Amplifier | 4-Channel Class D |
| Amplifier Power | 6,000 W |
| Operating Voltage | Auto-Switching 100-240 V, 50/60 Hz |
| Power Consumption | 660 W |
| Network | UDP over Ethernet |
| Input Selection | Analog/AES |
| Audio/Network | Multipin Amphenol — IP65 |
| Power | powerCON TRUE1 — IP65 |
| Weight | 117.7 kg / 259 lb |
| W × H × D (mm) | 1394 × 355 × 584 |
| W × H × D (in) | 54.88 × 13.98 × 22.99 |
| Max Line Length | 24 Modules |
| Environmental | IP54 |
| Module Construction | Void-Free, High-Grade Baltic Birch |
| Rigging Construction | 6061-T6 Aluminum |
| External Coating | EXL Polyurea |
| Grill | Powder Coated Aluminum |
| Warranty | 7 years · all components |
